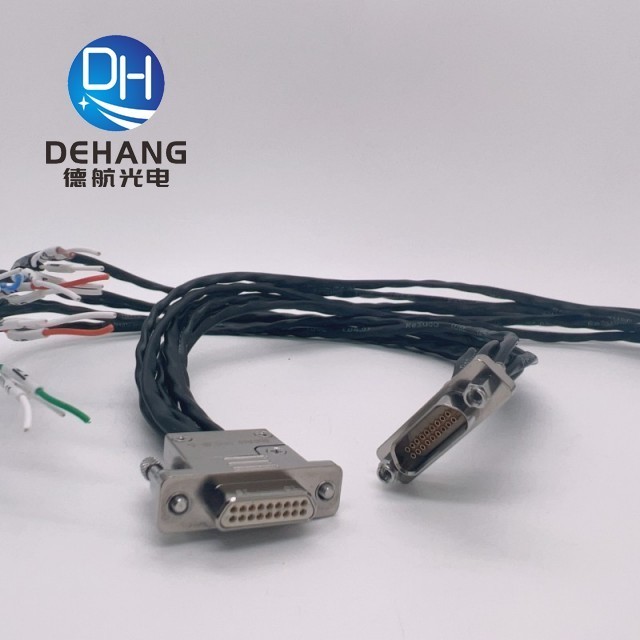

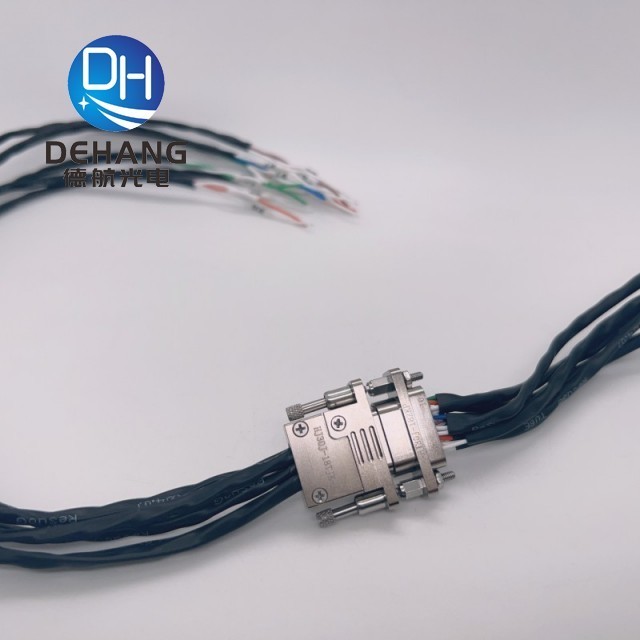

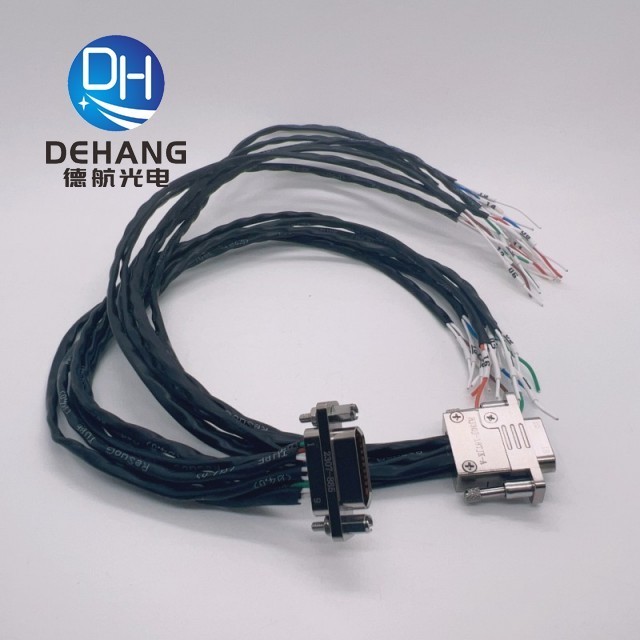

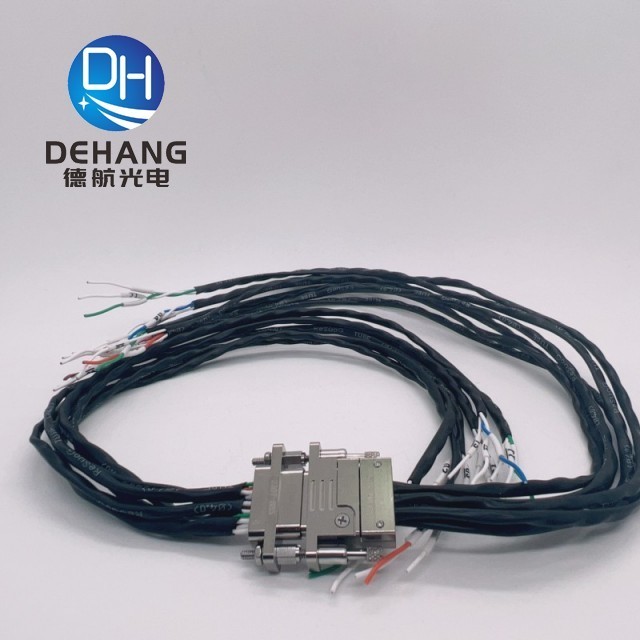

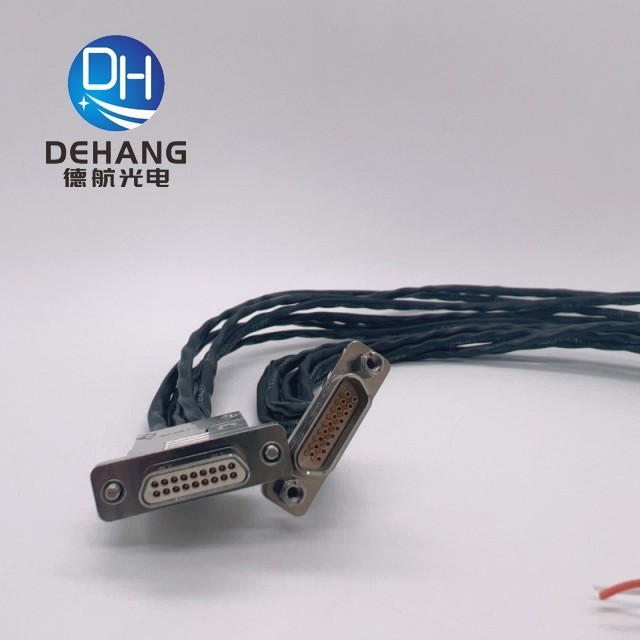

Product introduction: The positive contact piece adopts elastic stranded wire pins
● High-density contacts, with a pitch of 1.27 mm x 1.27 mm
● The product adopts a metal shielded shell
● Including 7 specifications ranging from 12-core to 100-core
Main technical performance: Product operating temperature: -55℃~125℃
● Rated operating current: 3A
● Contact resistance: ≤20mΩ
● Insulation resistance: ≥5000MQ at room temperature
● Damp heat ≥ 1MΩ (alternating damp heat for 10 cycles) (as per GJB1217)
● Withstand voltage: 800V (at room temperature)
● Vibration: Frequency 10~2000Hz, Acceleration 196m/s
● Impact: Acceleration of 735m/s^2
● Acceleration: 735m/s2
● Mechanical lifespan: 500 cycles
● Characteristic impedance: 100±150
● Near-end crosstalk: The near-end crosstalk is not less than 30dB within a 100ps time period
● Transmission characteristics: The transmission rate is 1.65Gbps
