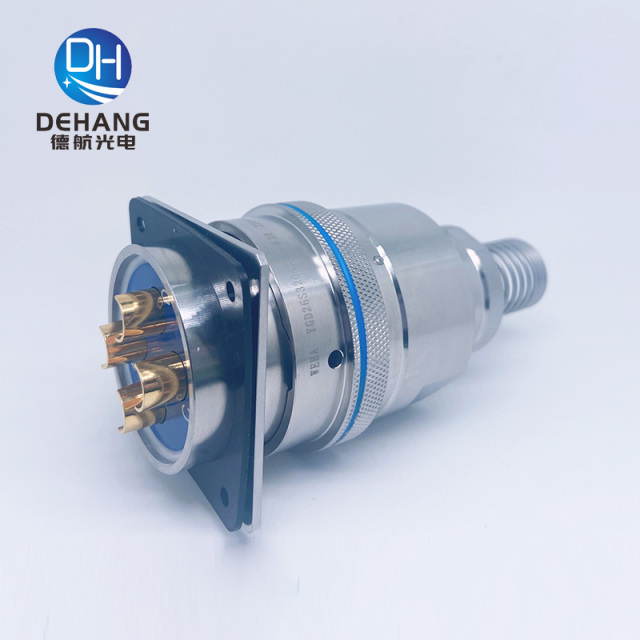

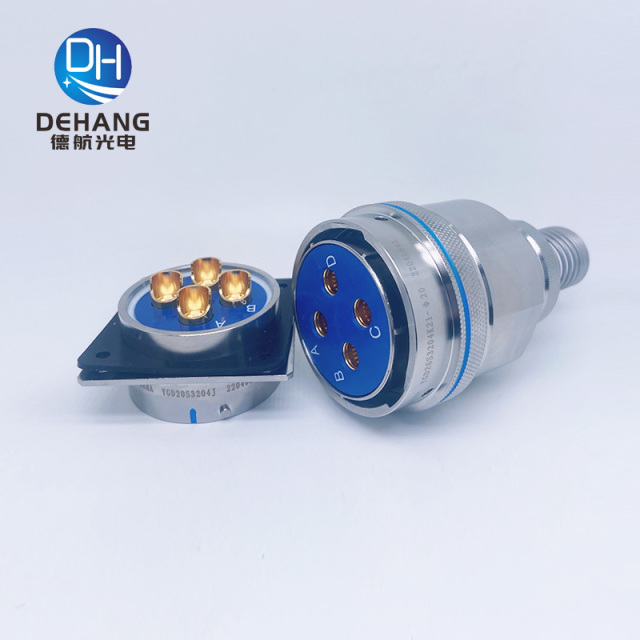

Product Introduction: This series of products complies with GJB5371-2005 "General Specification for YGD Series Circular Power Connectors"
The connection method employs bayonet connection, with the contact termination being soldered, and the socket contact being a crown spring socket
The product features quick connection and disconnection, good environmental resistance, and high reliability
● Suitable for connections in high-current power supply series
● The plug has multiple cable installation options
Main technical indicators: Operating temperature: -55℃~+125℃
Relative humidity: 90% to 98%
Operating pressure: 4.39kPa~101.33kPa
Salt spray: Type N, Type H for 48 hours; Type R, Type B for 96 hours
1. Tightness: Socket: pressure difference of 1.01x105Pa, no bubble leakage for 1 minute; plug-in connection: 1.8m water depth, no water leakage for 48 hours
Vibration: 10~2000Hz, 196m/s, instantaneous interruption ≤1μs
One impact: 980m/s, instantaneous interruption ≤1μs
Mechanical lifespan: For connecting rings made of aluminum alloy, ≥500 cycles; for connecting rings made of copper alloy, ≥2000 cycles
