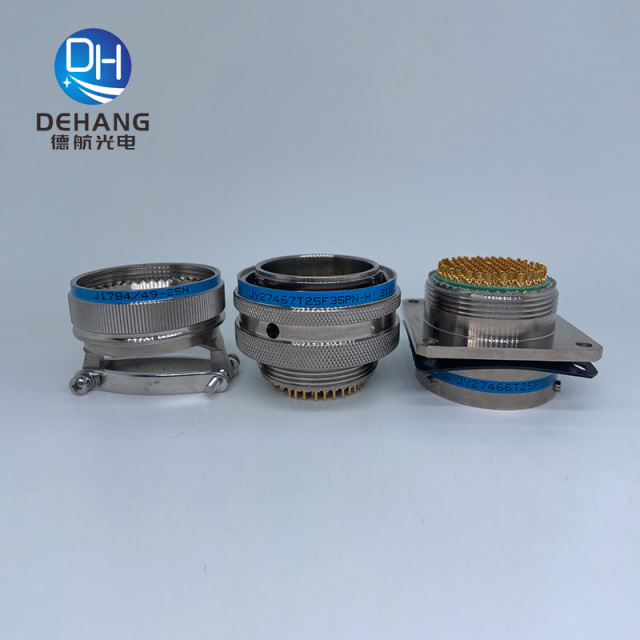

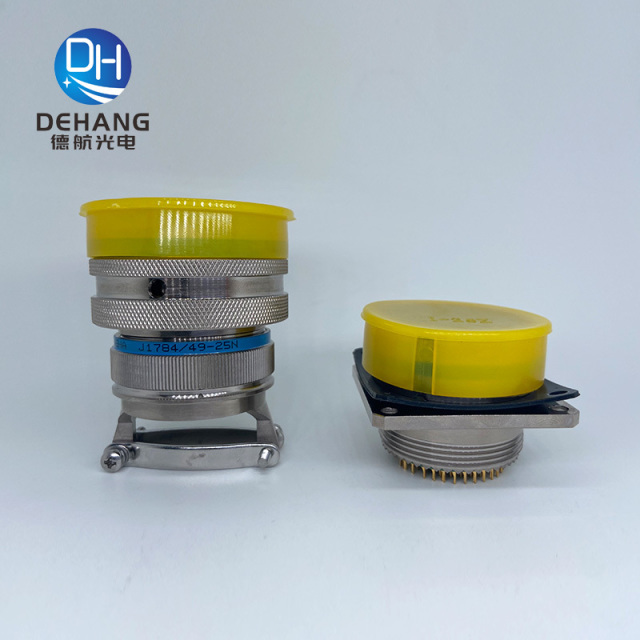

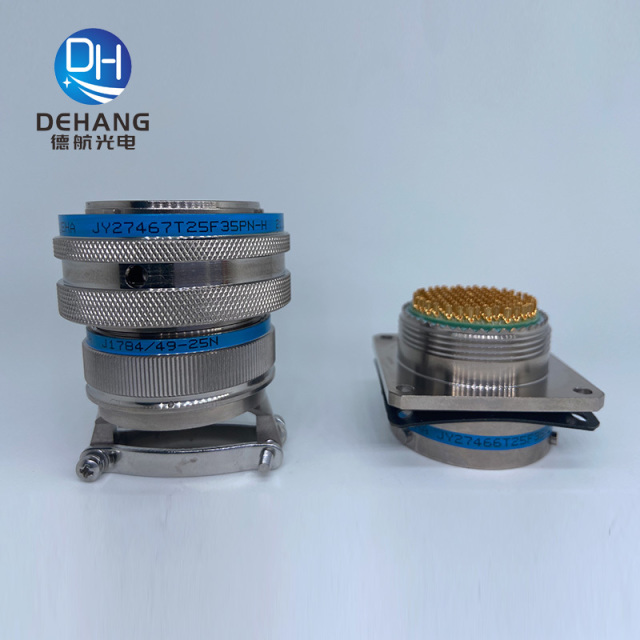

Product Introduction: Compliant with GJB599A (MIL-DTL-38999K) Series I
● Snap-in quick connection
● Small size, light weight, and high contact density
● EMI/RFI shielding
● The contact piece is detachable and features an anti-oblique insertion design
● Sockets are available in various installation forms, including box-type, wall-mounted, front-mounted, rear-mounted, and nut-fastened types
● Standard tail accessories compliant with GJB1784
● Special tail accessories (Ti-Ni alloy memory ring) suitable for clamping shielded cables
● 9 types of shell numbers, 70 types of hole group arrangements
● The mating interface and tail end feature a sealing structure, providing excellent three-proofing performance
● Five-key guiding mechanism, featuring five error-proofing key positions
● Widely used in aviation, aerospace, and military systems
Main Technical Performance [Mechanical Performance] - Housing: Aluminum alloy, stainless steel - Coating: Type B, cadmium plating, military green Type F, chemical nickel plating, Type E, stainless steel passivation - Insulator: Thermosetting plastic - Sealing body and sealing ring: Silicone rubber material - Contact: Copper alloy, gold plating, crimp type, solder type, printed board type - Mechanical life: 500 cycles - Vibration: Sinusoidal vibration, frequency 10~2000Hz, acceleration 294m/s2, random vibration, frequency 100~1000Hz, power spectral density 1g2/Hz - Impact: 3ms half-sine wave, peak acceleration 300g
[Environmental Performance] - Operating Temperature: Type B -65℃~+175℃, Type E and F -65℃~+200℃ - Salt Spray Resistance: Tested according to GJB1217 Method 1001, Type B for 500h, Type E for 1000h, Type F for 48h - Relative Humidity: Reaching 98% at 40℃ - Operating Altitude: ≤30480m - The electrical connector also exhibits good resistance to moisture, salt spray, mold, rain, dust, and other environmental factors
