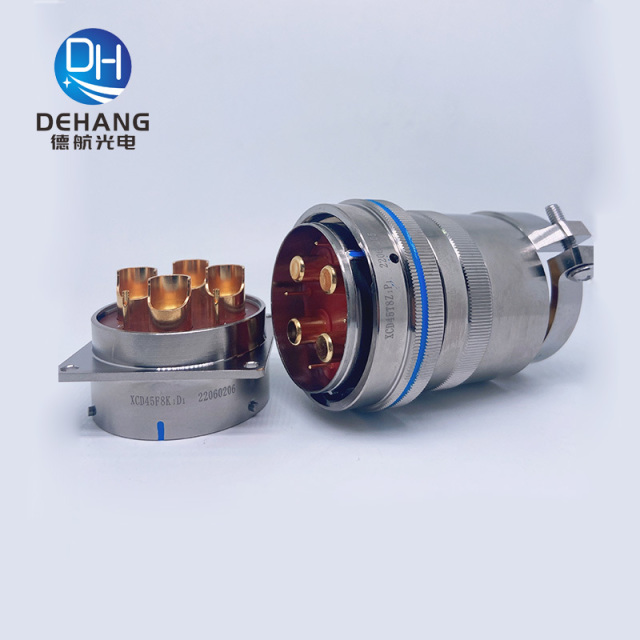

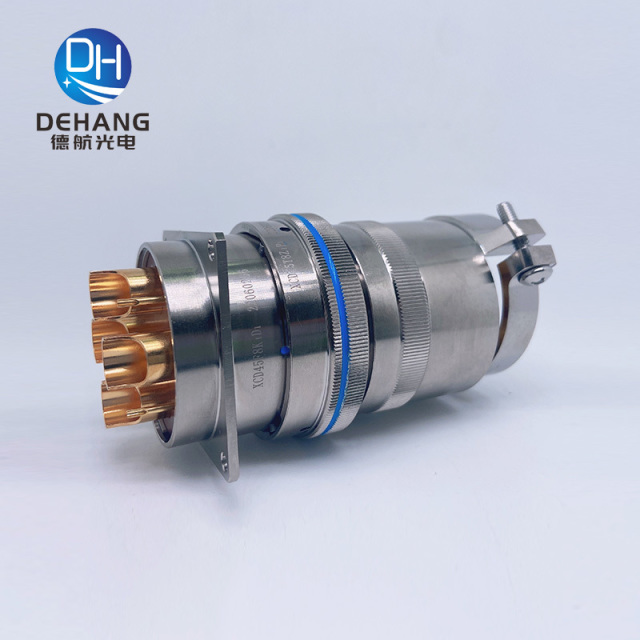

Product Introduction: Dedicated for Power Supply Use
● Rated operating current: 5A~300A
● Adopting a double-curved wire spring socket
● Multiple types of tail end connections
● Five recognition key positions
● Plugs and sockets can be equipped with either pins or holes
Main technical and mechanical performance
-Shell: high-strength aluminum alloy, stainless steel
-Insulator: thermosetting material
-Contact: copper alloy gold plated
- Vibration: Frequency 10~2000Hz
- Acceleration: 196 m/s²
-Impact: Acceleration of 980m/s²
- Constant acceleration: 980m/s²
- Mechanical lifespan: 1000 cycles
Environmental performance
Operating temperature: -55℃~+200℃
- Relative humidity: Reaching 95% at 40℃
- Operating altitude: 30,000m
- Salt spray resistance: electroless nickel plating, zinc plating for 96 hours
-Stainless steel passivation for 1000 hours
The electrical connector also exhibits excellent resistance to moisture, salt spray, mold, rain, dust, and other environmental factors.
